AntennaCAD

Overview

AntennaCAD is an advanced Graphical User Interface (GUI) for the Numerical Electromagnetics Code (NEC). Development of AntennaCAD was initiated in the early 1980's by General Motors to facilitate the use of NEC in analysis of vehicular antennas. The current version has been developed for Delphi by John Ross & Associates.

Features

AntennaCAD runs under Windows 2000/XP and uses OpenGL to for display of graphical data. Some of the features of the program are listed below:

Interfaces to Popular CAD programs

• Reads and writes files in DXF, CADL, IGES, & others

• Bi-directional translation from line and poly line entities to NEC wires and segments.

• Translation of color attributes to radius values and visa versa

Geometry Checking

• Checks for and fixes most common mesh problems

• Highlights problem segments in different colors so they can easily repaired in CAD programs. Automatically repairs many common problems.

OpenGL Graphic Displays

• 2D XY, 2D polar and Smith Charts

• 3D XYZ, 3D polar and 3D wire frame displays

Easy Simulation Configuration

• NEC Card Editor provides cued dialog boxes for all NEC control cards

• Control Cards are automatically ordered to provide optimum efficiency

• NEC input file is previewed prior to saving to disk

• On-line help files

Screen Shots

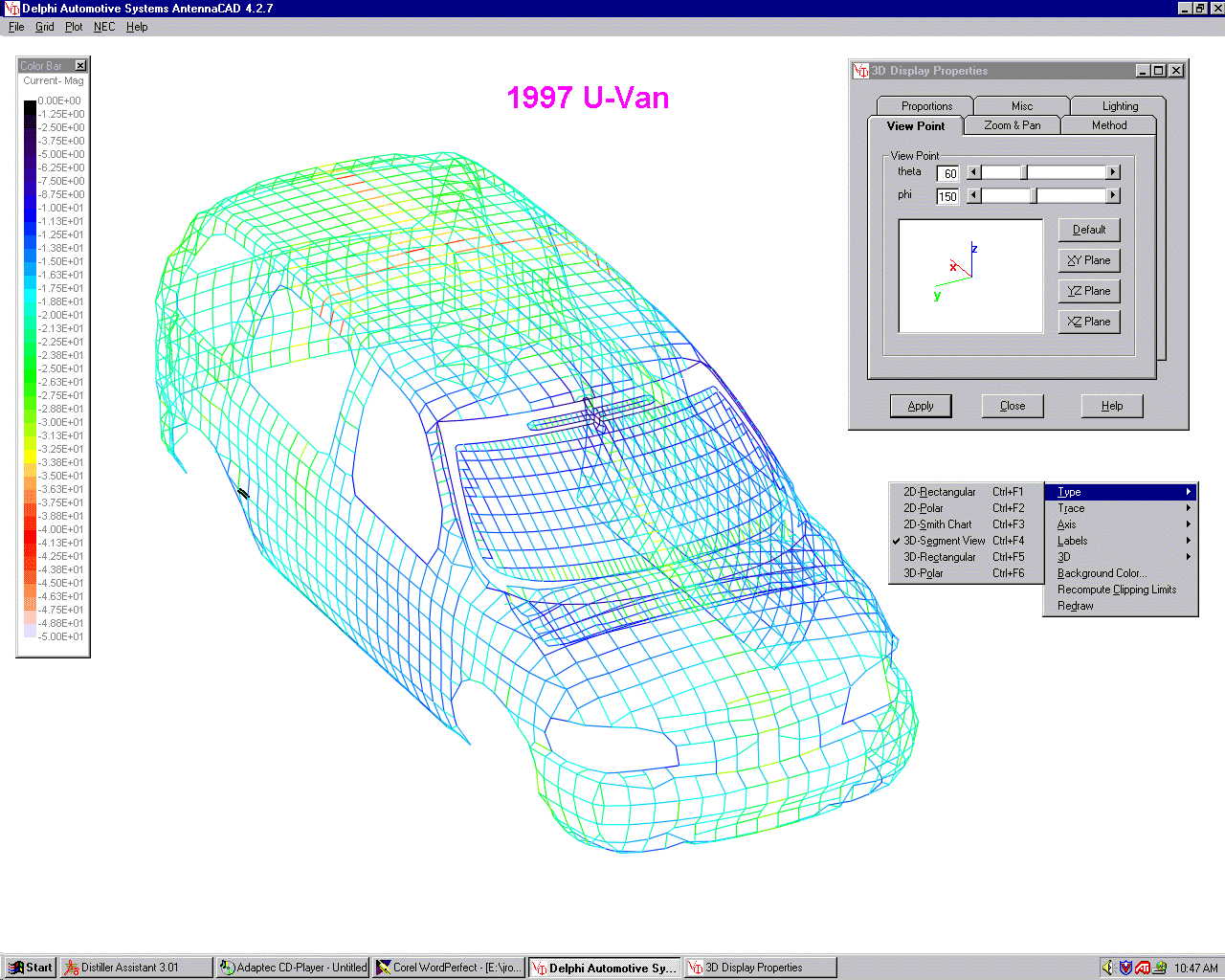

• 3D Wire Frame with false color display of current intensity on vehicle

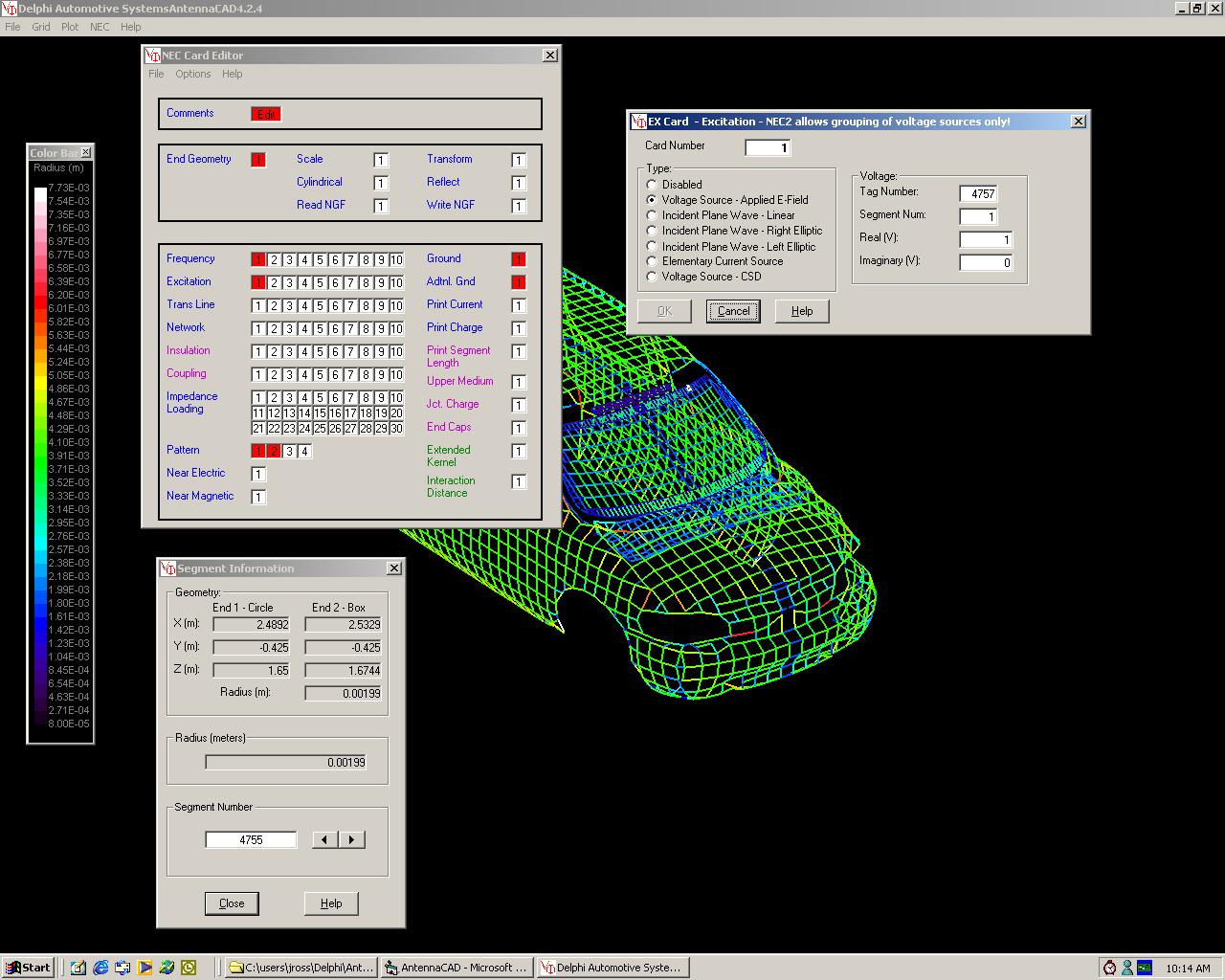

• NEC Card Editor showing cued dialog boxes

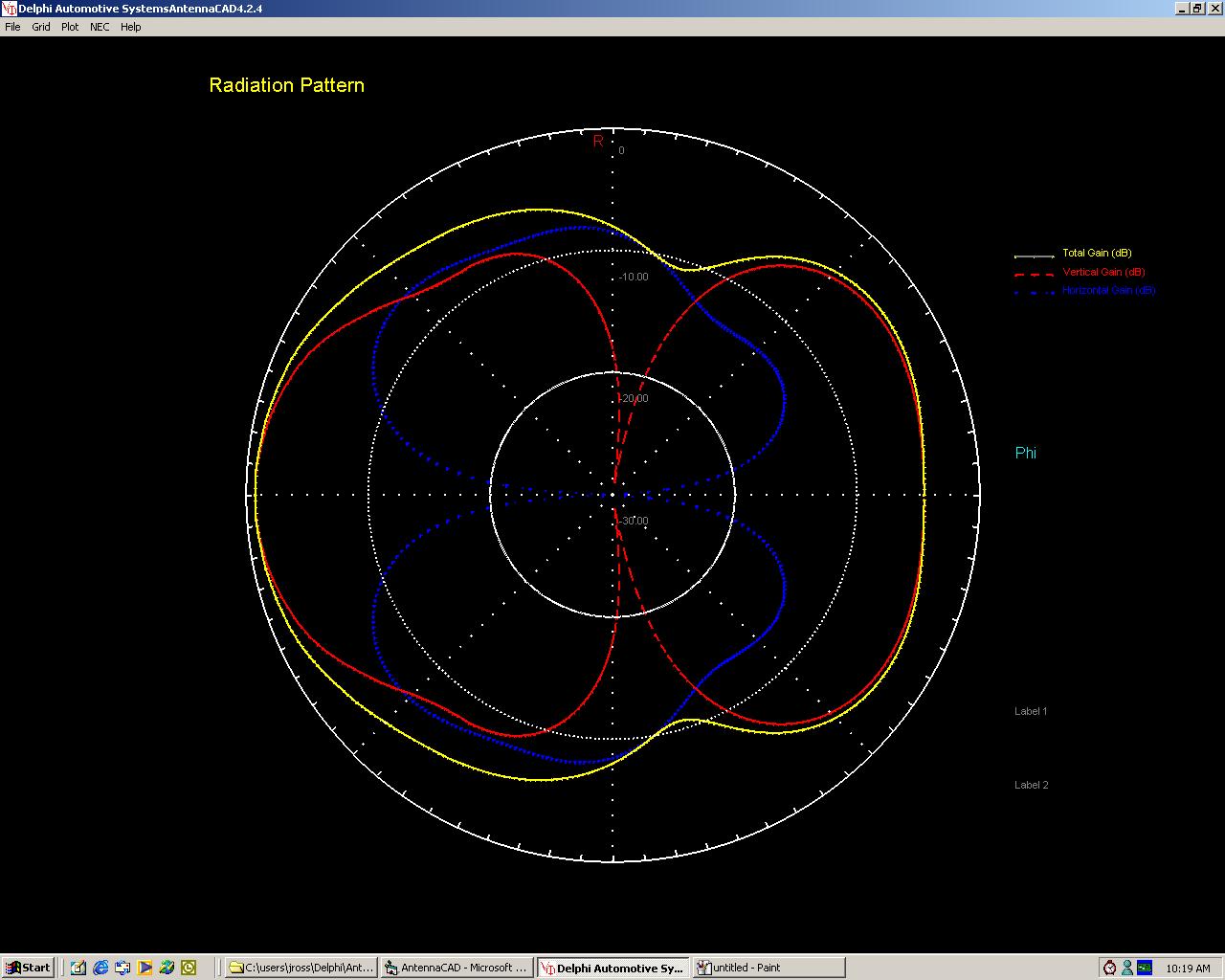

• 2D Polar plot of radiation pattern

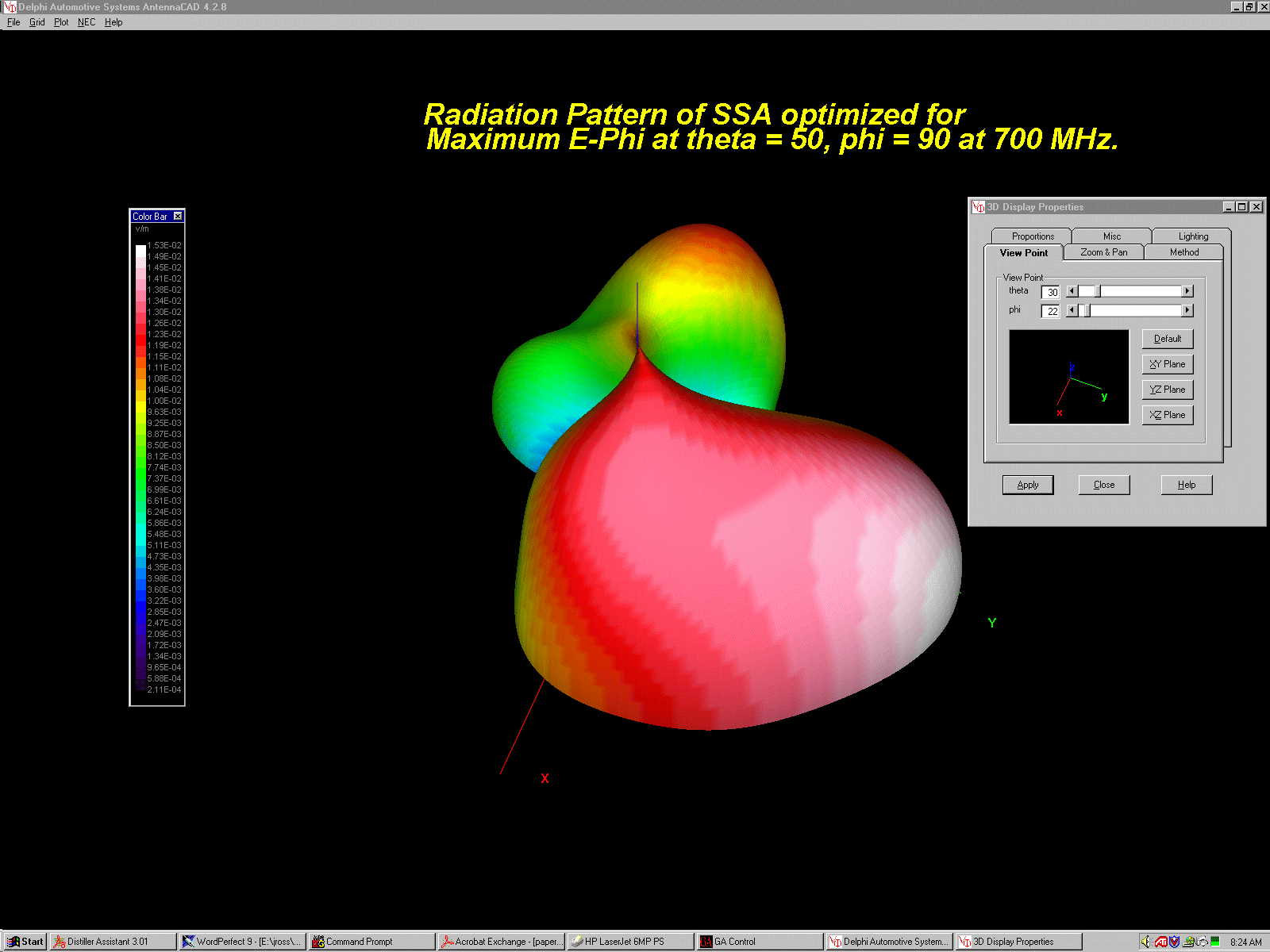

• 3D Polar plot of radiation pattern

Licensing and Pricing

Please contact Dr. Ross for further details.
